Canon imagePROGRAF Pro 2600 A1 24" 12 Colour Photographic & Fine Art Printer - 6405C003AA

12-colour ink

Cutting-edge LUCIA PRO II pigment ink set*

* Eleven out of the twelve inks are newly developed. The matte black ink is the same as the one used by the imagePROGRAF GP-2000/4000.

700/330/160ml ink tanks

Choices of ink tanks to support printing needs

Premium image quality

Deliver unbeatable image quality - most faithful colours with precision, exceptional colour gradation and courtesy of enhanced blacks

Increased durability

Improved image robustness on abrasion and light fastness to ensure prints last a lifetime

Free size borderless printing

Save time in trimming excessive margins for photography and art pieces

Intuitive functionality

Display panel with more useful information, practical LED interior light and roll media size indicator

Seamless workflows

Easy media handling with dual rolls configuration, auto media loading, simplified media handling and auto print head alignment

EPEAT Gold rating

Low power consumption and Polystyrene-free packaging.

EPEAT Gold registered in the U.S.

Printer Technology

Printer Type

12 Colours 24"

Print Technology

Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)

Print Resolution

2,400 x 1,200 dpi

Number of Nozzles

18,432 nozzles (1536 nozzles x 12 colours)

Line Accuracy

±0.1% or less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

Nozzle Pitch

600 dpi x 2 includes Non-firing nozzle detection and compensation system

Ink Droplet Size

minimum 4pl per colour

Ink Capacity

Bundled Starter Ink: 1920ml (160ml for each colour)

Sales Ink: 160ml / 330ml / 700ml

Ink Type

Pigment inks : 12 colours (Matte Black, Photo Black, Cyan, Magenta, Yellow, Grey, Photo Cyan, Photo Magenta, Photo Grey, Red, Blue, Chroma Optimiser)

OS Compatibility

32 Bit: Windows7, Windows 8.1, Windows 10

64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022

Apple Macintosh: macOS 10.15.7～macOS 13

Other Supported Job Submission Protocols

Apple AirPrint

Printer Languages

PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

Standard Interfaces

USB A Port: USB Memory (Direct Print) for PDF/JPEG files

USB B Port: Hi-Speed USB

Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)

Wireless LAN1: IEEE802.11n/IEEE802.11g/IEEE802.11b

Memory

Standard Memory

3GB

Expansion slot : No

Hard Drive

500 GB (Encrypted HDD)

Print Speed


Plain paper (A1):

0:58 (Fast)

1:38 (Standard)

Coated paper (A1)

1:38 (Standard)

3:11 (High Quality)

Glossy Photo Paper (A1)

3:11 (Standard)

5:02 (High Quality)

Media Handling

Media Feed and Output

Upper Roll Paper : One Roll, Upper-loading, Front Output

Lower Roll Paper: One Roll, Front-loading, Front Output

Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

Media Width

Roll paper: 152.4 - 610mm

Cut sheet: 152.4 - 610mm

Media Thickness

Roll/Cut : 0.07 - 0.8mm

Minimum Printable Length

Roll paper: 101.6mm (Cross and canvas paper: 200mm)

Cut sheet: 203.2mm

Maximum Printable Length

Roll paper : 18m (varies according to the OS and application)

Cut sheet : 1.6m

Maximum Media Roll Diameter

170mm

Media Core Size

Internal diameter of roll core: 2"/3"

Margins Recommended Area

Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm

Cut sheet: Top: 20mm, Bottom:20mm, Side:3mm

Margins Printable Area

Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm

Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm

Cut sheet: Top: 3mm, Bottom: 12.7mm, Side: 3mm

Media Feed Capacity

Roll Paper: Two rolls. Automatic switching is possible.

Roll Paper, Cut Sheet: Manual switching is possible

Cut Sheet: 1 sheet

Media Take-Up Roll Unit

Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll

Borderless Printing Width (Roll Only)

[Recommended] 515mm(JIS B2), 594mm(ISO A1), 10”, 14”, 17”, 24”

[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 364mm(JIS B3/B4), 420mm(ISO A2), 6’’, 8”, 12’’, 15", 16”, 18", 20’’, 22’’, 300mm, 500mm, 600mm

Other than above, free size borderless printing is supported on only roll paper by user definition

Maximum Number of Delivered Prints

Standard position: 1 sheet

Flat position: A2 landscape, glossy paper less than 10 sheets, coated paper less than 20 sheets

(excludes strong curled condition)

Power and Operating Requirements

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 85W or less

Sleep mode: 2.2W or less

Default setting for the time to enter the Sleep mode: Approx. 5 minutes

Power off: 0.1W or less

Operating Environment

Temperature: 15-30℃, Humidity: 10-80% RH (no dew condensation)

Acoustic Noise (Power/Pressure)

Operation: Approx. 46dB(A) (Measured based on ISO7779 Photo Glossy Paper HG/Standard/24")

Standby: 35 dB(A) or less

Operation: 6.4 Bels or less (Measured based on ISO7779 Photo Glossy Paper HG/Standard/24")

Regulations

CE mark, UKCA mark

Environment Certificates

CB certfication, EPEAT GOLD2

Dimensions and Weight

Physical Dimensions and Weight

W x D x H

Main unit + Stand

1110×984×1168 mm (Basket Opened）

1110×766×1168 mm (Basket Closed）

102kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions and Weight

Printer (Main unit with stand and pallet): 1324 x 912 x 1139 mm, 157kg

Roll unit: 1244 x 562 x 461 mm, 26kg

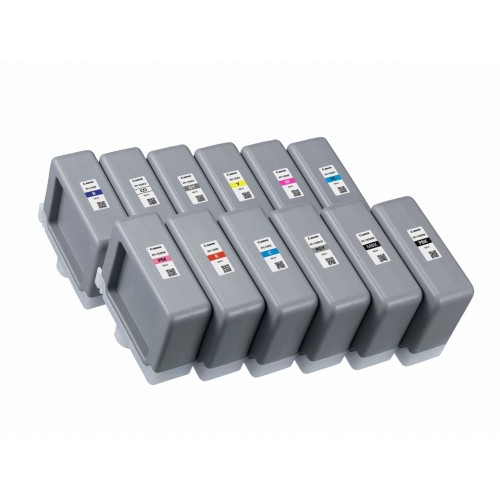

Ink Tank: MBK: PFI-2100(160ml)/PFI-2300(330ml)/PFI-2700(700ml)  Links : 160ml Inks, 330ml, 700ml

               Others:PFI-3100(160ml)/PFI-3300(330ml)/PFI-3700(700ml)

Print Head: PF-10

Cutter Blade: CT-07

Maintenance Cartridge: MC-30

Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of 12 x  160ml  starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Stack Printer Stand Setup Guide, Notice for Poster Artist WEB

1 Year Warranty
